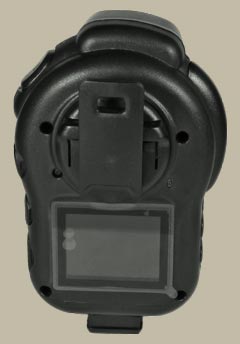

The SVR-19 Walkie-Talkie Transceiver Recorder is a fully functional shoulder mic which houses a video recorder, audio recorder, and still photo camera.
The SVR-19 was designed to save departments and individual officers' time and money. On-site, up close video and audio recordings document what actually happened during an incident protecting departments and individual officers from frivolous law suits. The SVR-19 also reduces hours spent on report writing. Second by second time/ date stamp and specific departmental input codes support the implementation of a chain of custody of evidence protocol.
We provide two supporting software to help you to view the video clips, audio clips, and photo.
Bundle video and photo function into should mic
Video and photo capture
Infrared light
Lever 4 water resistance
6000 mAh super capacity battery
The SVR-19's full color LCD screen provides many important pieces of information.
When turned on, the LCD screen displays the following four status icons. (See Diagram A):
When in the process of recording video, the LCD screen displays the following four status icons. (See Diagram B):
| Image Sensor | 5MP CMOS |
| Lens | Fixed focused lens with a wide degree viewing angle |
| Aperture | F3.2 |
| Image Size | |
| Video Recording Format | VGA |
| Light condition | Min 1 Lux |
| LCD Monitor | 1.5" TFT |
| Sensitivity | Auto |
| Shooting Distance | Normal 1.8m - Infinity |
| Shutter Speed | 1/15--1/1000 sec |
| Image Compression | JPEG |
| Photo Resolution | 2848 × 2136 |
| Video Compression | MPEG4 AVI VGA Format |
| Video Resolution | 640 × 480 Approx. 30 FPS |
| Auto power off | 3 min |
| Storage Media | N-Flash up to 4G |
| Digital Output | USB 2.0 |
| Recording Time | With a Extra battery could continue take video over 14hours |
| File formats | STILL: JPEG 24Bit color Movie: AVI (MPEG4+ wave audio) |
| Operating Humidity | 10% - 80% |
| Operating Temperature | 0° - 40°C |
| Battery Pack | Rechargeable Lithium Polymer 3.7V 900mAh (Extra -6000 mAh) |
| Charge | Charging Voltage limited to 4.2V (USB port charging) |
| Switch | Stop/Record, Camera Shutter, Hold Key, PTT, Power On, LED/Flash (optional |
| Microphones | Voice recording - Omni Directional Communication - Omni Directional |
| Speaker | 36mm Mylar Speaker |
