| | SPECIFICATIONS |
Frequency range: | | 1 MHz - 3 GHz |
Size: | 80 mm high x 68 mm wide x 31 mm deep |
Weight: | 210 g |
Impedance:
| 50 Ohms (BNC Socket) |
Case: | Stamped aluminum with black anodized finish |
Battery: | Internal 4 x AA 600 mAH NiCd pack |
Power: | 9 VDC 300 mA |
Timebase: | Less than 1 PPM at room temperature |
| |
FEATURES |

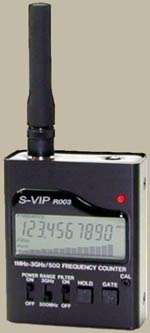

- 10 digit Liquid Crystal Display
- Filter to prevent display of random noise
- Low power consumption (Average 6 hour battery life)
- Supplied with NiCd pack, AC wall charger and telescopic antenna
- Hold switch to lock display
- Low battery indicator
- Ultra sensitive synchronous detector 16 section bargraph to show
RF signal strength - High speed 300 MHz direct counter with 0.1 Hz resolution
- 4 selectable gate speeds
|
DATASHEET |
| |
