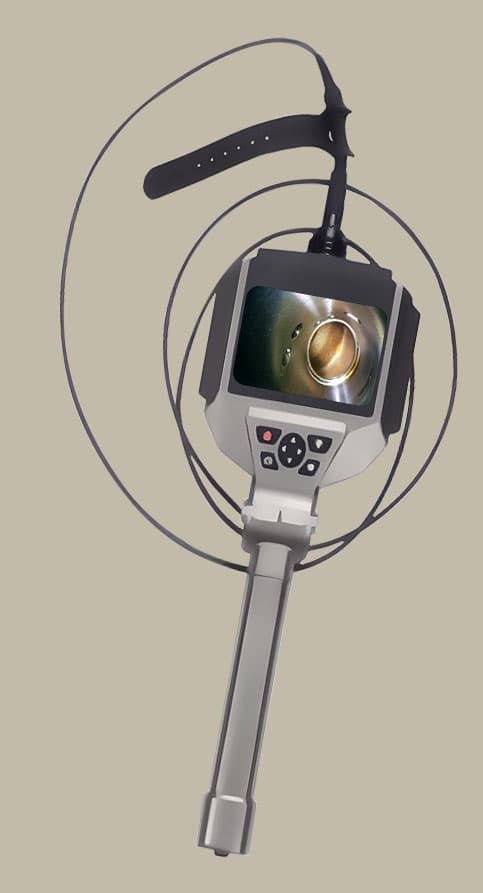

Portable Industrial Videoscope/Endoscope SDV-CF Series

Portable Industrial Endoscope SDV-CF Series

Product Description

The SDV-CF Series Handheld Industrial Endoscope is equipped with 1 MP/2 MP high-definition cameras featuring fiber optic lighting and manual control. This portable industrial endoscope is furnished with a new 5-inch color high-definition IPS screen that offers high brightness and delivers exquisite image quality.

The endoscope is designed for ease of use, allowing for inspection, recording, and storage with just one touch. It also features touch buttons for controlling lens dimming.

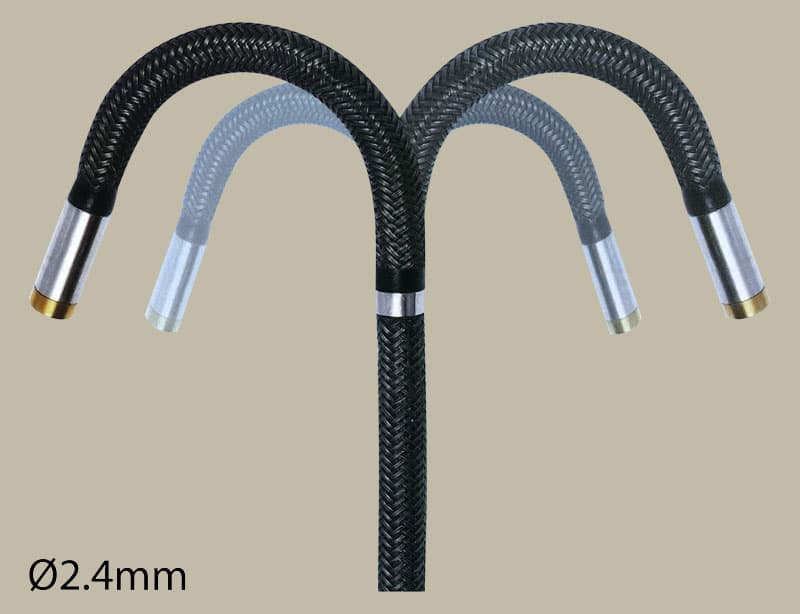

The wire probe section incorporates a four-way bending function. Four high-strength steel wires inside the detection probe can be controlled by a four-way handle, enabling the probe to bend in four directions. The probe's bending control is highly flexible, providing a clear view of the internal conditions, and the handle is lightweight and user-friendly.

An integrated 8GB SD memory card permits the storage of inspection images.

Endoscope Main Technical Parameters
DisplayColor 5-inch IPS Screen
Operating SystemMultitasking Operating System
Probe Light SourceLED white light, Infrared, Ultraviolet
Probe four-way bending angle>120°
Probe Angle ControlMotor Control
White BalanceAuto / Manual
Extended Storage32GB
Battery Capacity4500 mAh

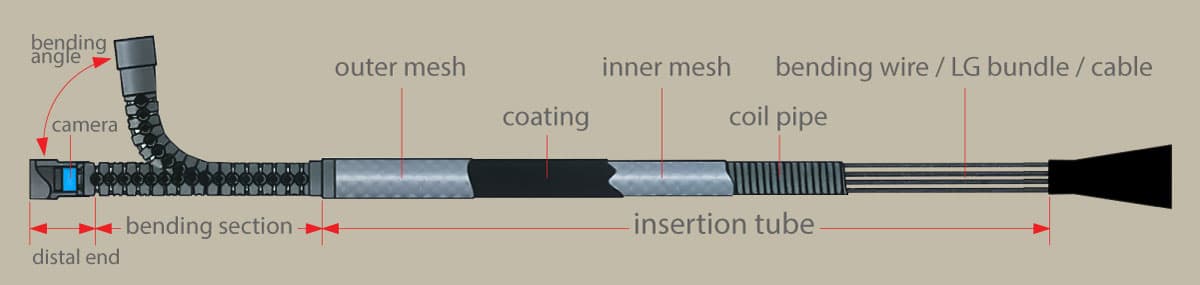

Wire Probe Structure

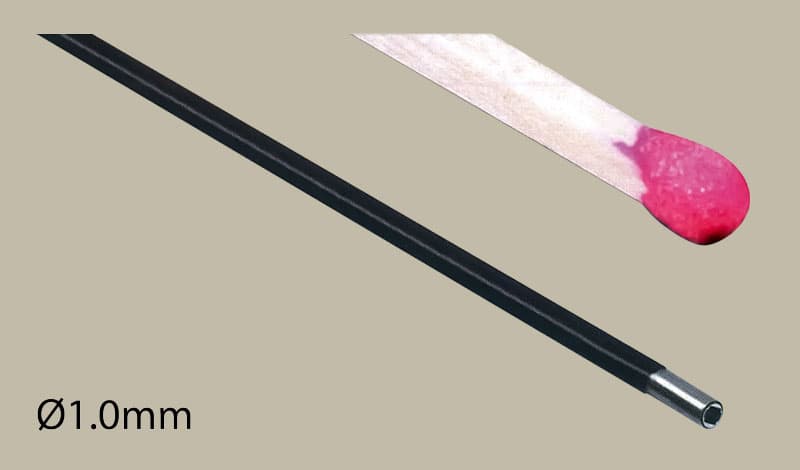

Wired Probe 1.0 mm


Wired Probe Main Technical Parameters
Probe Diameter2.2 mm2.4 mm2.8 mm3.9 mm6.0 mm
Camera Pixels3000001000000
Depth of Field3-50 mm4-80 mm8-150 mm10-100 mm
View DirectionDirect View / Side ViewDirect ViewDirect View / Side View
Viewing Angle120°90°120°
Lighting FormOptical FiberOptical Fiber / LED
Bending MethodElectric Control 180°Electric Control 360°

Available Wired Probes

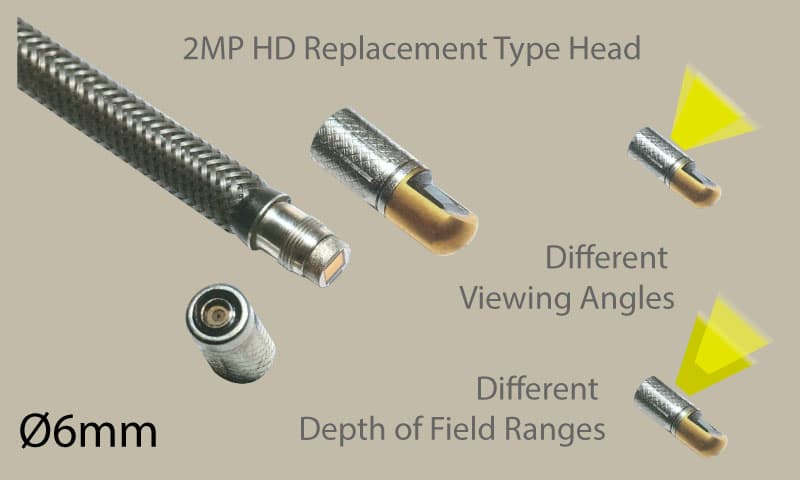

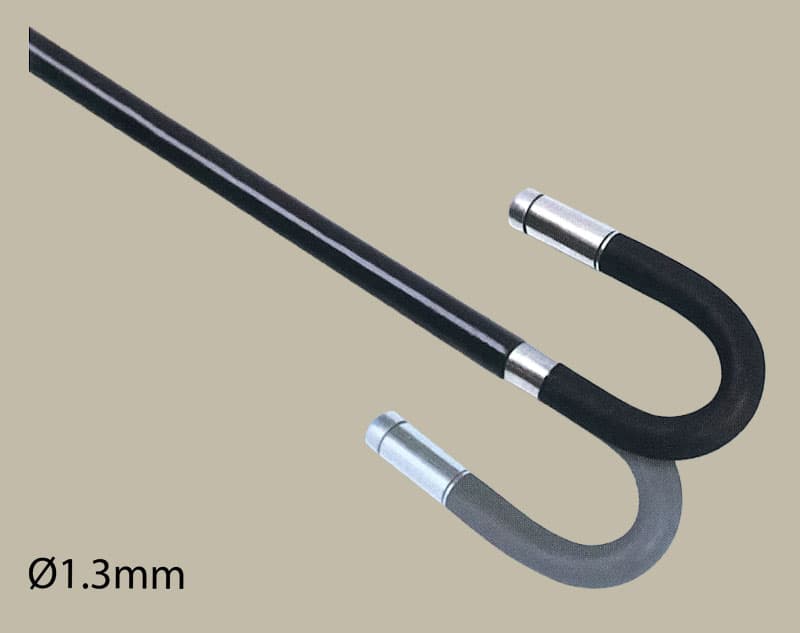

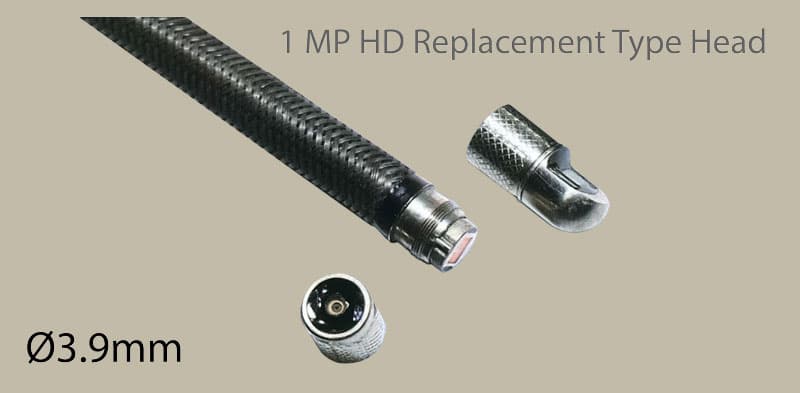

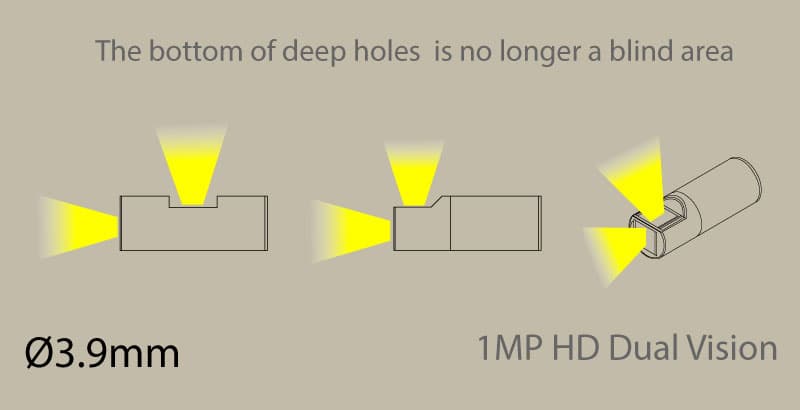

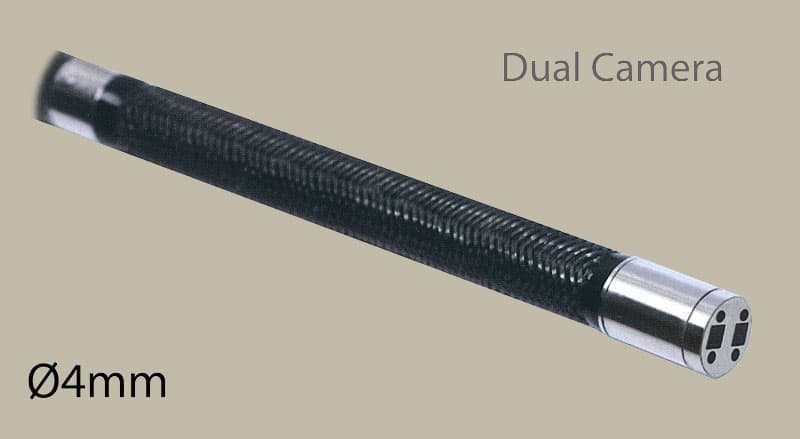

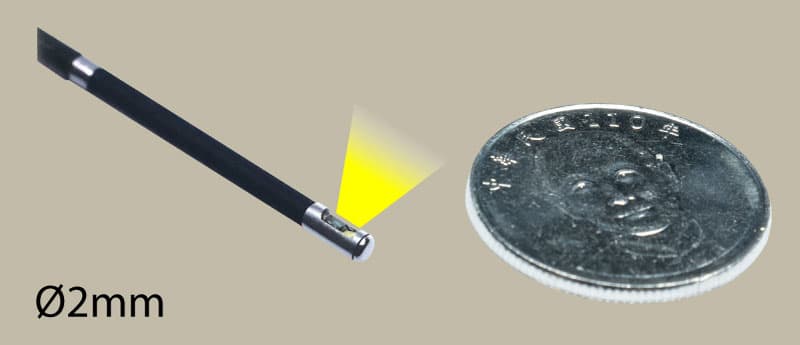

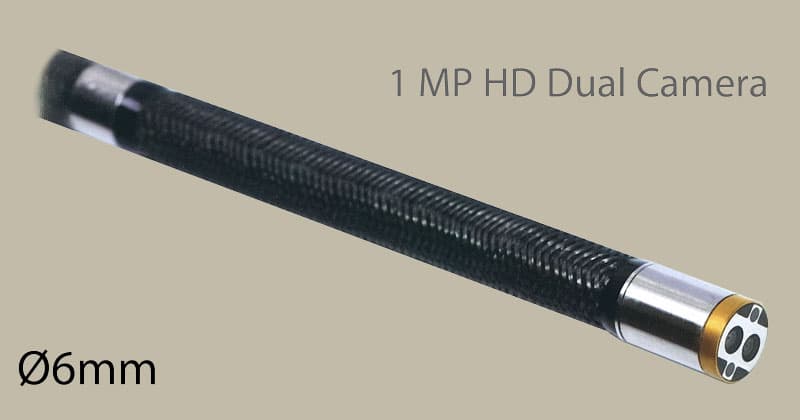

Wired Probe 1.0 mm Wired Probe 1.3 mm Wired Probe 2.0 mm Wired Probe 2.4 mm 1MP HD Dual Vision Wired Probe 3.9 mm 1MP HD Replacement Type Head Wired Probe 3.9 mm Dual Camera Wired Probe 4.0 mm 1MP HD Dual Camera Wired Probe 3.9 mm 6.0 mm 2MP HD Replacement Type Head Wired Probe 6.0 mm

Industrial Borescope Applications

  1. Aviation Maintenance: this involves detecting internal hidden issues in aircraft engines, such as combustion chambers, blades, and turbines. It also encompasses regular inspections and maintenance of weld surfaces and internal pipelines.
  2. Automotive Industry: quality control during the manufacturing process of automobile engine chambers, cylinder blocks, turbines, oil pipelines, and other related products.
  3. Mechanical Processing: precision removal of burrs, iron chips, rust, and other impurities in various part cavities.
  4. Energy and Power: equipment maintenance across industries like nuclear power, wind power, active power generation, hydropower, and petrochemicals. This includes gearbox, generator, and internal pipeline maintenance, as well as detecting internal faults to minimize downtime and plan chemical repairs.
  5. Casting: detecting defects like internal cross-hole structures, sand inclusions, cracks, and other imperfections in precision casting, sand casting, die casting, and similar products.
  6. Military and Police Use: these tools are used for daily maintenance of gun barrels and barrels and ensuring quality control during production. They are also utilized for daily explosion-proof security inspections conducted by public security, armed police, troops, firefighting units, procuratorial organs, national security, urban anti-terrorism teams, criminal investigation units, customs inspections, and life detection operations.
