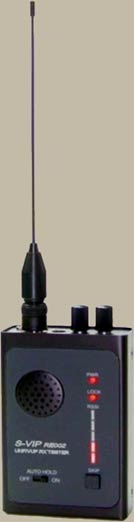

UHF/VHF RX Tester RE-002

RE-002

SPECIFICATIONS
Frequency range:
  30 MHz - 900 MHz (Cellular Blocked)
Modulation:
FM
Deviation:
< 100 KHz
Sensitivity:
< -53 dBm at 500 MHz
Size:
100 mm high x 68 mm wide x 31 mm deep
Weight:
280 g
Impedance:
50 Ohms (BNC Socket)
Case:
Stamped aluminum with black anodized finish
Battery:
Internal 5 x AA 600 mAH NiCd pack
Power:
9 VDC 300 mA

FEATURES
  • Pocket size
  • Built-in speaker
  • Equipping with a 2.5 mm earphone mini jack
  • 5 section RSSI bargraph to show relative RF signal strength
  • Incorporating an ICOM CI-V interface for tuning with the RW-00X series
  • Enabling to hold on an active channel
  • Low battery indicator
  • Lock indicator to display signal reception
  • Low power consumption (Average 5 hour battery life)
  • Supplied with NiCd pack, AC wall charger, flexible antenna and earphone
DATASHEET
RE-002
