| | Jamming range: | 60M | | TX frequency: | 851/869 ~ 894 MHz
925/936 ~ 965 MHz
1800 ~ 1990 MHz
2110 ~ 2170 MHz
300 ~ 470 MHz | | Total output power: | 60W
( 800: 10W, 900:10W ,1800-1950:10W ,2100-2200:10W 300-470: 20W) | | Cover interface standards: | AMPS,N-AMPS, NMT, TACS, GSM, CDMA, TDMA, iDEN, UMTS, Walkie-Talkie | | Continue using time: | 2 hours | | Operating temperature: | -10°C ÷ +60°C | | Humidity: | 5% ~ 80% | | Dimension: | 560 x 455 x 265mm (L x W x H) | | Weight: | 26 Kg (without antenna) | | | - All the TX frequency covered down link only
- RF output indicating of LED display
- Switch ON/OFF outer
- Two fans of convection with filter
- 5 Panel Antennas integrated
- External N type antenna connector
- External High Gain 6dBi Omni GP antenna (Option)
- The outer power input from AC 100 ~ 240V
- Built in lithium battery (re-chargeable) can support 2hours operating time
- Indicating of LED display, included "Charging", "Battery full", "Battery low", "Overload"
- Can support use while battery charging

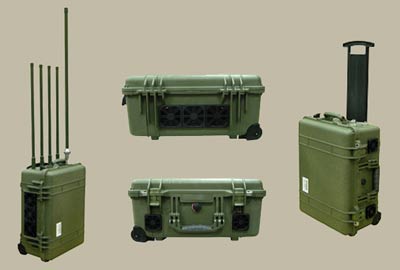

- Device housed in a trolley-style, ruggedized pelican case
|
|
|
|
